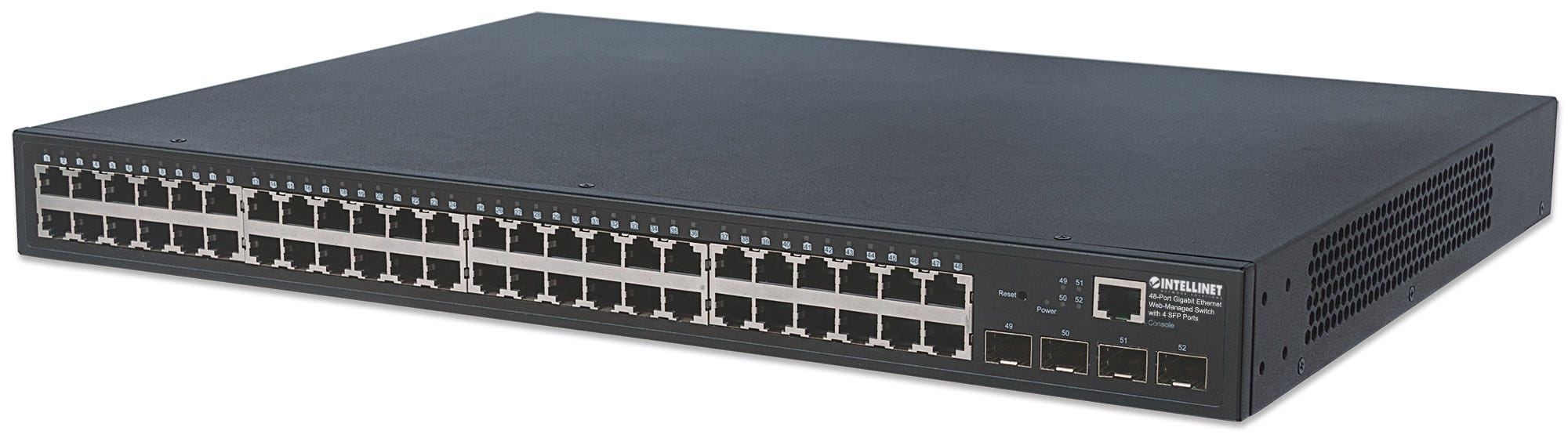

Intellinet 48-port Gigabit Web-managed Switch WITH 4-sfp Modules. IEEE 8023az EN
$328.99
In stock
SKU
TWS-561334
INTELLINET 48-PORT GIGABIT WEB-MANAGED SWITCH WITH 4-SFP MODULES. IEEE 8023AZ EN
See all Specs
Warranty
One year warranty and hassle free returns
Estimated Delivery
5-7 business days
We Accept Visa, Mastercard, American Express, and Discover
Half-width 16x10g Stackable Managed Switch WITH 8x10gbase-t AND 8xsfp+ Previous
328.990000

INTELLINET 48-PORT GIGABIT WEB-MANAGED SWITCH WITH 4-SFP MODULES. IEEE 8023AZ EN
Intelligent and secure edge connectivity, ideal for small and medium enterprise or branch office networks and essential business applications. This 48 + 4 Layer 2 Gigabit Switch is a high-performance SNMP-managed device that provides users with 48 10/100/1000 Mbps Ethernet and 4 additional Gigabit SFP ports. The Web/SNMP management provides remote control capability for flexible network management and monitoring options. Whether managed through an in-band SNMP management station or an Internet Web browser, the Intellinet Network Solutions Gigabit switch (561334) facilitates network administration and problem diagnosis. Flexible Network Management The Intellinet Network Solutions 48-Port Web-Managed Gigabit Ethernet Switch is easy to use and manage, designed to increase business productiv
- 48 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds
- Four small form-factor pluggable GBIC module slots (SFP)
- All RJ45 ports with Auto-MDIX and NWay auto-negotiation support
- Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
- SNMP Management and Remote Monitoring (RMON)
- SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9
- IPv4/v6 dual protocol
- Supports VLAN (tag-based and port-based)
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Fiber optic connector | MiniGBIC |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
| Data transmission | |
| Switching capacity | 104 Gbit/s |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 1.5 MB |
| Security | |
| IGMP snooping | Yes |
| Security algorithms | SNMP, SSH-2 |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Supported network protocols | IPv4, IPv6 |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power, Speed |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 36 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 335 mm |
| Height | 44 mm |
| Weight | 4.2 kg |
| Packaging content | |
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
| Certificates | |
| Certification | FCC A, CE |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Brand | INTELLINET |
| Part Number | 561334 |
| UPC | 766623561334 |
| Sold By | TechWorld Supply |
| Condition | New |
