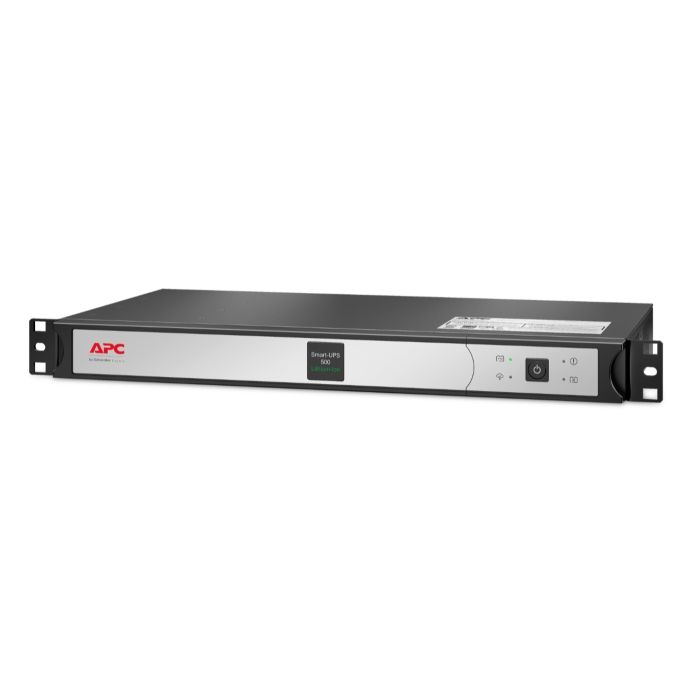

APC SMART-UPS, LINE INTERACTIVE, 500VA, LITHIUM-ION, RACKMOUNT 1U, 120V, 4X NEMA

Be the first to review this product

$1,301.99

In stock

SKU

TWS-APC-SCL500RM1UNC

APC · 500VA · Rackmount

See all Specs

Warranty

One year warranty and hassle free returns

Estimated Delivery

5-7 business days

We Accept Visa, Mastercard, American Express, and Discover

SMART-UPS 1500VA LCD RM 2U 120V- 2U - LINE-INTERACTIVE - 1000WATT - 1440VA - NEM Next Product Image 1

RPDU, BASIC 2U, HW IN, (2) L6-30, (8) 5-15/20 OUT Previous Product Image 1

Details

Overview

The APC SMART-UPS, LINE INTERACTIVE, 500VA, LITHIUM-ION, RACKMOUNT 1U, 120V, 4X NEMA from APC delivers 500VA capacity. Manufactured to meet industry standards for reliable connectivity in structured cabling and network infrastructure deployments.

Key Specifications

Capacity

500VA

Form Factor

Rackmount

Brand

APC

Warranty

Manufacturer Warranty Included

Condition

New — Factory Sealed

Ideal For

Network Infrastructure

Reliable connectivity for wired environments

Data Center Cabling

High-performance cables for rack deployments

Desktop Connectivity

Connect displays, docks, and peripherals

Full Technical Specifications

40 specs · 6 categories

Display

Response time

6 ms

Connectivity

Ethernet LAN (RJ-45) ports

Physical

Width	17" (432 mm)
Height	1.73" (44 mm)
Depth	9.13" (232 mm)
Weight	9.3 lbs (4.22 kg)
Product color	Black, Silver
Form factor	Rackmount

Environment

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 77480.3" (0 - 1968 m)
Non-operating altitude	0 - 581220.5" (0 - 14763 m)
Certification	CSA C22.2 NO. 107.3, cULus, FCC 15 Class A, NOM, UL 1778, UL 1973
Compliance certificates	RoHS

Packaging

Cables included	USB cable
Package width	23.2" (590 mm)
Package depth	13.3" (337 mm)
Package height	6.61" (168 mm)
Package weight	14.3 lbs (6.49 kg)

Other Specifications

Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	10 year(s)
Battery recharge time	3 h
Rack capacity	1U
LED indicators	Yes
UPS topology	Line-Interactive
Output power capacity	0.5 kVA
Output power	400 W
Input operation voltage (min)	92 V
Input operation voltage (max)	139 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Automatic Voltage Regulation (AVR)	Yes
Surge energy rating	680 J
Audible alarm(s)	Yes
Audible alarm modes	Alarm when on battery
Waveform	Sine
Output frequency	50/60 Hz
Output voltage regulation	5%
Storage temperature (T-T)	-15 - 45 °C
