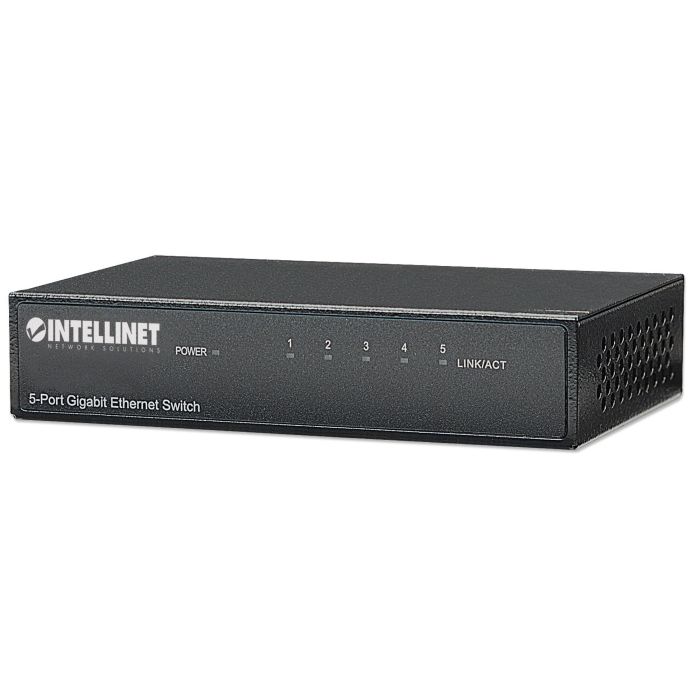

5 PORT Gigabit Ethernet Switch

$17.99
In stock
SKU
TWS-530378
5 PORT GIGABIT ETHERNET SWITCH
See all Specs
939 available
Warranty

One year warranty and hassle free returns


Estimated Delivery

5-7 business days


We Accept Visa, Mastercard, American Express, and Discover

Gs1100-16 - 16-port 10/100/1000 Gigabit Switch Desktop W/rackmounts Previous Gs1100-16 - 16-port 10/100/1000 Gigabit Switch Desktop W/rackmounts
17.990000
5 PORT GIGABIT ETHERNET SWITCH

5 PORT GIGABIT ETHERNET SWITCH

Easy to install, with auto-learning capabilities. _x000D_ _x000D_The Intellinet Network Solutions Gigabit Ethernet Switch is perfect for the home or small office, delivering top speeds to the desktop to satisfy your demanding network needs. _x000D_ _x000D_High-Speed Performance _x000D_This desktop switch includes five Gigabit Ethernet ports, providing you with high performance on your network to handle quick transfer speeds that support disk mirroring, data backup, graphics image file transfers and other bandwidth-intensive applications. _x000D_ _x000D_Auto Features _x000D_This network LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play and hassle free. Auto-MDI/MDI-X crossover on all ports eliminates the need

  • 10/100/1000 Auto MDI-X ports automatically detect optimal network speeds
  • High performance, half and full duplex, with zero packet loss
  • Full flow control support provides optimum performance
  • Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
  • Auto-learning of network configuration
  • Supports jumbo frames up to 9 kBytes
  • Store and forward switching architecture
  • Non-blocking wire-speed forwarding and filtering
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power connectorDC-in jack
Network
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportNo
Full duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
Data transmission
MAC address table1024 entries
Store-and-forwardYes
Jumbo frames supportYes
Packet buffer memory0.112 MB
Security
MAC address filteringYes
Design
StackableNo
Product colourBlack
LED indicatorsYes
Power
Power supply includedYes
DC input voltage5 V
Input current1 A
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 90 °C
Operating relative humidity (H-H)10 - 90%
Weight & dimensions
Width140 mm
Depth78 mm
Height28 mm
Weight310 g
Packaging content
ManualYes
Certificates
CertificationFCC Class B, CE, RoHS
Logistics data
Harmonized System (HS) code85176990
BrandINTELLINET
Part Number530378
UPC766623530378
Sold ByTechWorld Supply
ConditionNew
