24-port Gigabit Ethernet Switch WITH 2 SFP Ports
$109.99
In stock
SKU
TWS-561877
24-PORT GIGABIT ETHERNET SWITCH WITH 2 SFP PORTS
See all Specs
Warranty
One year warranty and hassle free returns
Estimated Delivery
5-7 business days
We Accept Visa, Mastercard, American Express, and Discover
OPEN 40g Qsfp+ Network CARD - MSA Compliant - Intel Xl710-bm2 40 Gigabit Etherne Previous
109.990000

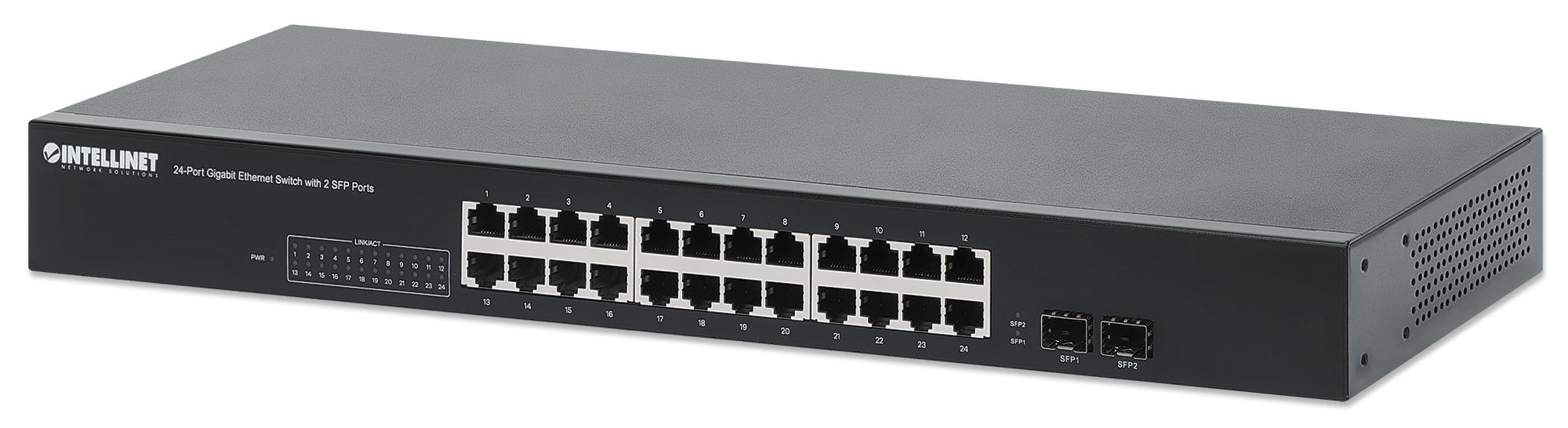

24-PORT GIGABIT ETHERNET SWITCH WITH 2 SFP PORTS
Network Switch with 26 ports - 24 RJ45 and Two SFP - to eliminate the bottlenecks in your networkThe Intellinet Network Solutions 24-Port Gigabit Ethernet Switch offers an array of features while providing superior network throughput. Equipped with 24 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this Switch offers plenty of performance for your computers, servers, and other networking devices. In addition, two small form-factor pluggable GBIC module slots (SFP) provide fiber connectivity for greater distances. These are not shared combo-ports, but true Gigabit ports, pushing the total available bandwidth up to 52 Gbps.Auto FeaturesThis Gigabit LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play a
- 10/100/1000 auto-sensing ports to automatically detect optimal network speeds
- Two small form-factor pluggable GBIC module slots (SFP)
- 52 Gbps switch fabric
- All RJ45 ports with Auto-MDIX (auto uplink) support
- Supports NWay auto-negotiation
- Store and forward switching architecture
- Full/half duplex operation
- Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat5, Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Data transmission | |
| Switching capacity | 52 Gbit/s |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 0.5 MB |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Performance | |
| Fanless | Yes |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 20 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 130 mm |
| Height | 44 mm |
| Weight | 1.75 kg |
| Packaging content | |
| Cables included | AC |
| Manual | Yes |
| Packaging data | |
| Package weight | 2.7 kg |
| Certificates | |
| Certification | FCC, CE, UKCA, NDAA |
| Brand | INTELLINET |
| Part Number | 561877 |
| UPC | 766623561877 |
| Sold By | TechWorld Supply |
| Condition | New |
