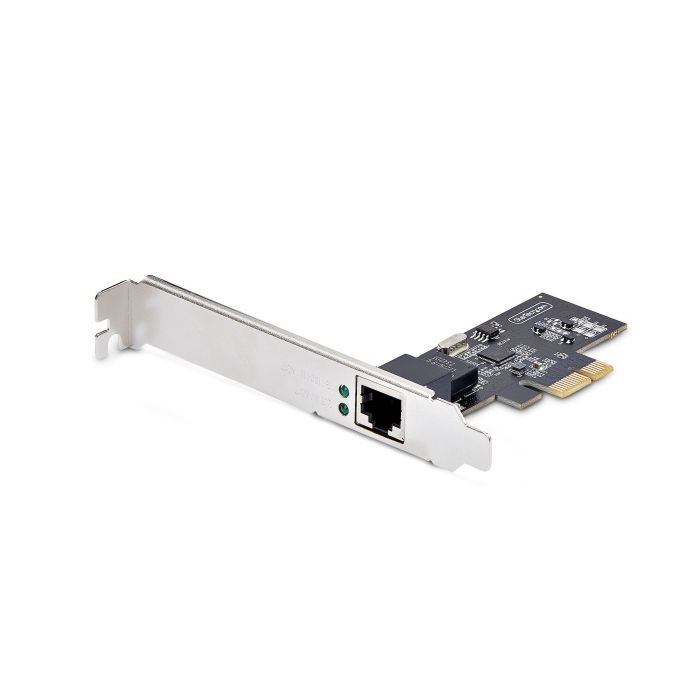

1-PORT 2.5GBPS NBASE-T PCIE NETWORK CARD, INTEL I225-V, SINGLE-PORT COMPUTER NET

The 1-PORT 2.5GBPS NBASE-T PCIE NETWORK CARD, INTEL I225-V, SINGLE-PORT COMPUTER NET from StarTech with 1-port configuration supporting 2.5GBPS throughput. Built to meet the demands of professional IT environments, this product delivers reliable performance for enterprise deployments.

Full Technical Specifications

34 specs · 6 categories

Connectivity

Ethernet LAN (RJ-45) ports

1

Network

Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Networking standards	IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Jumbo frames support	Yes

Physical

Width	3.5" (89 mm)
Height	0.591" (15 mm)
Depth	4.76" (121 mm)
Weight	3.53 oz (100 g)
Product color	Black

Environment

Operating temperature (T-T)	5 - 50 °C
Operating relative humidity (H-H)	5 - 90%

Packaging

Package width	6.69" (170 mm)
Package depth	5.59" (142 mm)
Package height	1.18" (30 mm)

Other Specifications

SEO Title	StarTech.com 1-Port 2.5Gbps PCIe Network Card, Computer Network Card, Intel® I225-V, Multi-Gigabit Ethernet Interface Card
Jumbo frames	9000
Internal	Yes
Component for	PC/server
LED indicators	Yes
Chipset	Intel I225-V
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2019, Windows Server 2022
Quantity per master (outer) case	80 pc(s)
Master (outer) case width	23.8" (605 mm)
Master (outer) case length	15.2" (385 mm)
Master (outer) case height	12.8" (325 mm)
Wake-on-LAN ready	Yes
Maximum data transfer rate	2500 Mbit/s
Full duplex	Yes
Auto-negotiation	Yes
Auto MDIX IEEE	Yes
Storage temperature (T-T)	-10 - 70 °C
Quick installation guide	Yes
Mounting brackets included	Yes

Specifications sourced from ICEcat and manufacturer datasheets. Confirm critical specs with the manufacturer before purchase.
